JDM650-BIB 高速盒中袋制袋机

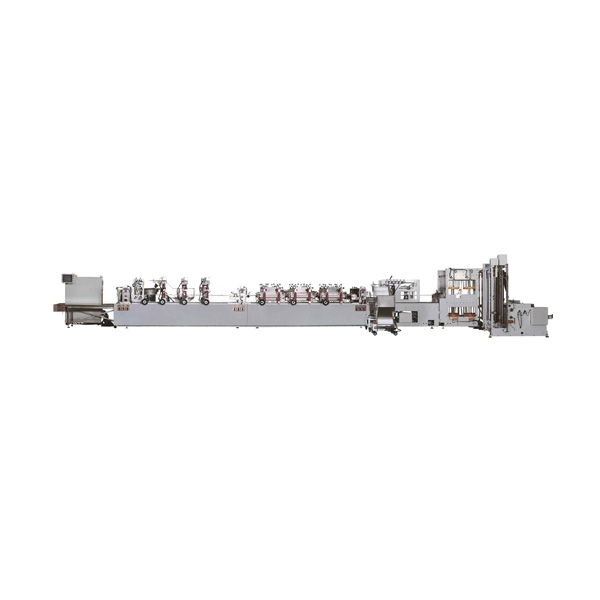

Automatic High Speed Bag In Box Making Machine(Nozzle cover automatic put online)
机型 | Model | JDM650-BIB |
卷膜尺寸 | Film Size | Max. 1300mm X ¢800mm |
制袋规格 | Bag Size | Max. 700 X 650mm |
制袋速度 | Bag Making Speed | 25-30pcs/min |
加嘴规格 | Nozzle Spe. | According to client provide |
总功率 | Total Power | 50.5KW |
电源 | Power | AC 380V 50HZ 3P, AC 220V 60HZ 3P |
气源 | Compressed Air | 0.5-0.7Mpa 100NL/min |
外形尺寸 | Dimension | L X W X H 15200 X 4200 X 1900mm |
重量 | Weight | 8,000KG |
gusset seal
\
water bag
wine bag
